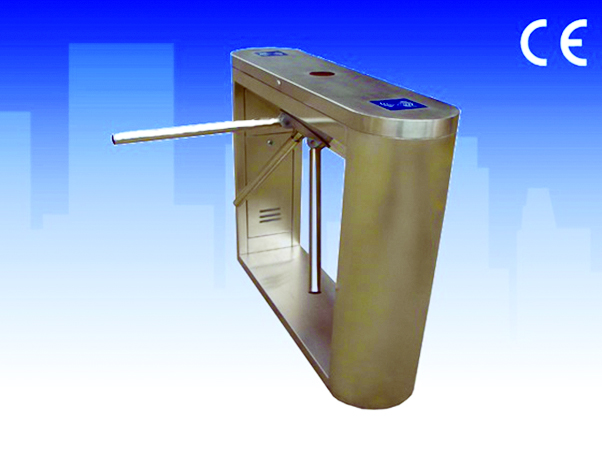

Tripod Turnstile STB002
Main Functions：
1. Auto-reposition function: After card read, passengers don‘t pass within regulated time period, turnstile will be locked automatically
2. Bi-direction passing or uni-direction
3. When power off, arm will be dropped automatically
4. Self-lock function: arm will be locked automatically after passenger passing
5. LED passing arrow can show direction to indicate passenger to pass
6. Standard interfaces are convenient for connection with different readers which can send relay signal
7. RS485 interfaces can connect turnstile with computer directly
8. Stable running with little noise.
Material:
- Power Supply: AC220V±10V ,50Hz / AC110V±10V ,60Hz
2. Power Consumption : 100W
3. Temperature : -15 to 60 degrees
4. Humidity : <95%, without concretion
5. Passage Width : 600 mm
6. Passing Speed : 30 persons/min (normal open), 20 persons/min (normal close)
7. Arm Open/Close Time : 2s
8. Input Interface : +12V electrical signal or impulse signal with width more than 100ms, drive current >10mA
9. Communication Interface : RS485 (Distance: <=1200m)
10. Working Environment : Indoors or outdoors with shed
11. Arm Turning : Uni-direction or Bi-direction
Structure:

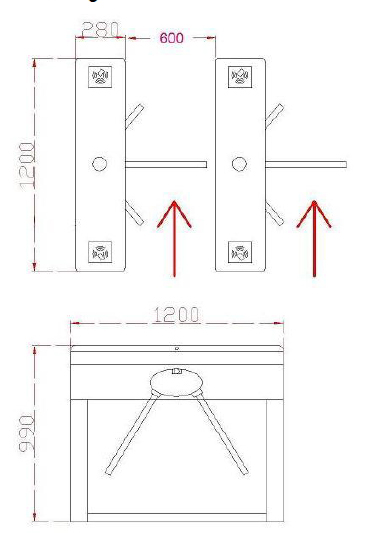

1. Dimension
1200 x 280 x 990 mm.
2. Arm diameter
○ Φ 32(diameter)
● Φ 38(diameter) ○ Φ 42(diameter) ○ Customer drawings
Finishing:
● Brushed
○ Grit satin
○ Hot-galvanized ○ Powder coated in colors
Constructions: Turnstile column SS304 Guiding elements inside and outside Light metal casting, natural anodized
Portal frame Made of steel with space reserved for installations
Working principles: ● Push the arm to make turnstile rotating
Power supply:
● 220V AC @ 60HZ Working power: 24V DC
Controlling way:
● Relay signal
● RS485
