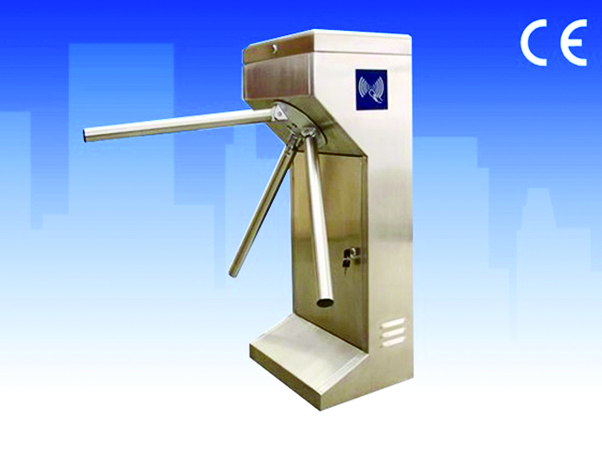

Tripod Turnstile STB001
Main Functions：
- Auto-reposition function: After card read, passengers don‘t pass within regulated time period, turnstile will be locked automatically
2. Bi-direction passing or uni-direction
3. When power off, arm will be dropped automatically
4. Self-lock function: arm will be locked automatically after passenger passing
5. LED passing arrow can show direction to indicate passenger to pass
6. Standard interfaces are convenient for connection with different readers which can send relay signal
7. RS485 interfaces can connect turnstile with computer directly
8. Stable running with little noise
Material:
202 stainless steel
304 stainless steel
316 stainless steel
Parameter
- Power Supply: AC220V±10V ,50Hz / AC110V±10V ,60Hz
2. Power Consumption: 100W
3. Temperature: -15 to 60 degrees
4. Humidity: <95%, without concretion
5. Passage Width: 600mm
6. Passing Speed: 30 persons/min (normal open), 20 persons/min (normal close)
7. Arm Open/Close Time: 2s
8. Input Interface: +12V electrical signal or impulse signal with width more than 100ms, drive current >10mA
9. Communication Interface: RS485 (Distance: <=1200m)
10. Working Environment: Indoors or outdoors with shed
Arm Turning: Uni-direction or Bi-direction
Structure:

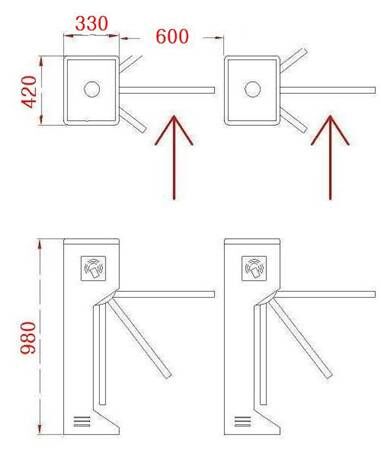

1. Dimension : 420x330x980mm
2.Arm diameter
Φ 32(diameter)
Φ 38(diameter)
Φ 42(diameter)
Application :
All places which need to control people in and out.
Finishing:
Brushed
Constructions:
Turnstile column SS304
Guiding elements inside and outsideLight metal casting, natural anodized
Portal frameMade of steel with space reserved for installations
Working principles:
Push the arm to make turnstile rotating
Power supply:
220V AC @ 60HZ
230V AC @ 50HZ
110V AC @ 60HZ
220V AC @ 50HZ
Working power:24V DC
Controlling way:
Relay signal
RS485
