Features

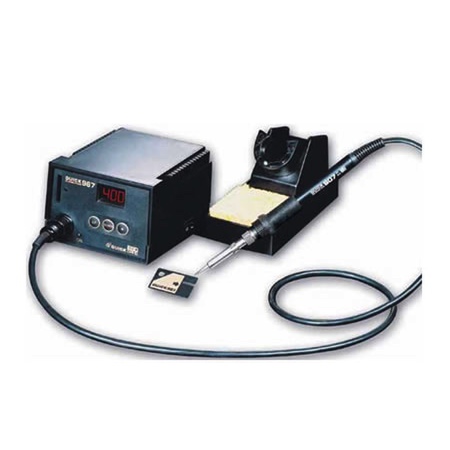

- Ceramic heating element has a super long service time. QUICK967ESD soldering station uses same soldering tips and heating element as international ones, resulting in easy replacement.
- Light handle is suitable for long time of use.
- It is designed with ESD safe, and can protect sensitive SMD components from being damaged by static charge leakage.
- Precise and stable temperature control.
- Advanced micro computer inside.
- Lock screw prevents inadvertent changes to the temperature setting.
- Digital indicator ensures accurate temperature settings.
- It is especially suitable for mounting and reworking SMD components by hand, soldering common and directly-inserted electronics or lead free soldering under other special conditions.
Specifications
| Power consumption | 60W |
| Output voltage | 24V AC |
| Temperature range | 200℃-480℃ |
| Temperature stability | ±1℃ (stationary air, no load) |
| Tip to ground potential | <2mV |
| Tip to ground resistance | <2Ω |
| Housing surface impedance | 106– 109Ω Anti-electrostatic |
| Dimensions | 170(L) * 120(W) * 93(H) mm |
| Weight | About 1.4 kgs. |

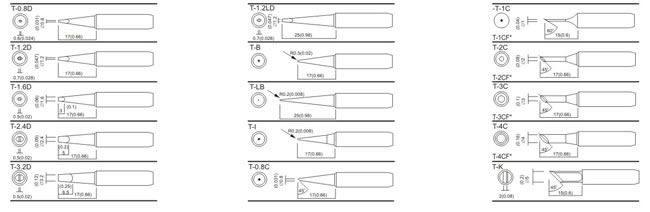

Replaceable tips
OPTION :

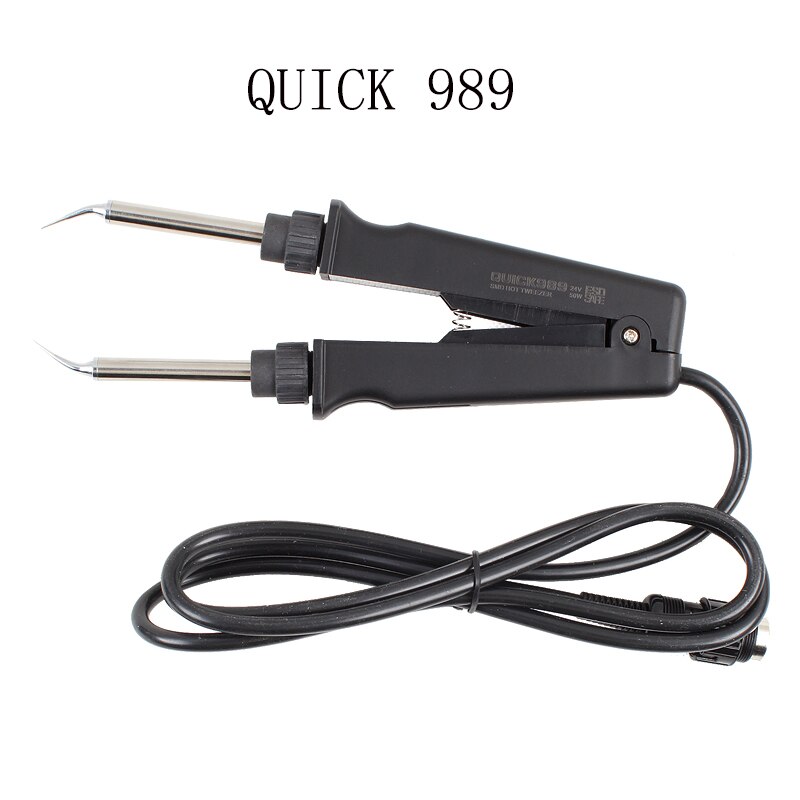

QUICK SMD Hot Tweezer 989
Output Voltage : 24 VAC
Power Consumption : 25W x 2
Temperature Range : 200’C – 480’C
ESD safety by design
