Feature
- Ceramic heater has a long lifetime.
- Light handle is suitable for long time of use.
- Calibrate temperature digitally.
- New appearance and firm structure.
- Various types of tips are available.
- ESD safe design.
- It is especially suitable for mounting and reworking SMD components by hand, soldering common and directly-inserted electronics, or lead free soldering under other special conditions.
Specifications
| Power consumption | 90W |
| Temperature range | 80℃ – 480℃ |
| Temperature stability | ±2 ℃(stationary air, no load) |
| Ambient temperature(Max) | 40℃ |
| Heater operating voltage | 30 V AC |
| Tip to ground potential | < 2mV |
| Tip to ground resistance | < 2Ω |
| Length of handle wire | 1.2 meter |
| Length of handle only(without wire) | 190 mm. |
| Dimensions | 160(L) * 105(W) * 125(H) mm. |
| Weight | About 2.6 kgs. |

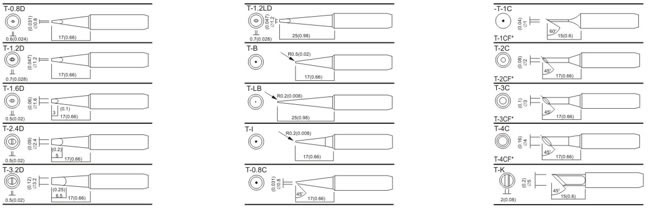

Replaceable tips
