Features
- High frequency current heating, fast heating and rapid thermal recovery. QUICK203G soldering station is suitable for lead free soldering.
- Micro computer control. Set temperature only by pressing keys and calibrate it digitally. Auto sleeping and auto shut-off functions are available.
- Large power design (150 watt), max 8 mm. tip available.
- Temperature locked by password to ensure soldering process.
- ESD safe design, various types of tips available.
Specifications
| Max power consumption | 150W |
| Input voltage | 110V/220V |
| Output voltage | 36V AC 400K Hz |
| Temperature range | 50℃- 600℃ |
| Temperature stability | ±2℃(stationary air, no load) |
| Tip to ground potential | < 2mV |
| Tip to ground resistance | < 2Ω |
| Dimensions | 200(L) * 130(W) * 100(H) mm. |
| Weight | About 2.7 kgs |

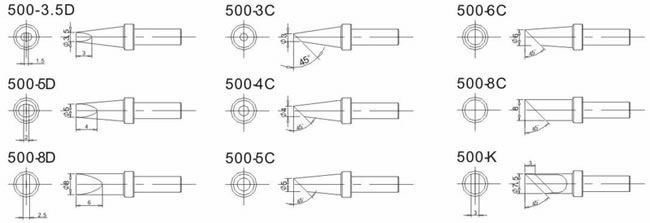

Replaceable Tips
