Features
- High frequency current heating, temperature controlled by K-type sensor, rapid temperature rising and thermal recovery.
- Automatic soldering wire breaking, ESD safe design
- Micro computer control, temperature adjusted by buttons, digital temperature calibration, auto sleeping function.
- Auto and manual feeding modes available. Feeding times can be set.
- Feeding speed, length and interval time can be adjusted, with adjustable backing function.
- Pedal switch and hand switch available.
- Can be used as a lead free soldering station only.
- Can prevent soldering wire from spattering during soldering process.
Specifications
| Power consumption | 90W |
| Voltage | AC 220V |
| Temperature range | 200℃ – 480℃ |
| Temperature stability | ±2℃ (stationary air, no load) |
| Tip to ground resistance | < 2Ω |
| Tip to ground potential | < 2mV |
| Motor | Step motor |
| Feeding speed | about 2.7mm/s-27mm/s(36°/s-360°/s) |
| Feeding length | 0-150 mm |
| Feeding interval time | 0 – 2.7s |
| Backing time | 0 – 0.9s (about 0-25 mm; constant speed : 360°/s) |
| Feeding mode | Auto (1-9)/Manual (0) |
| Diameter of soldering wire | 0.3, 0.4, 0.5, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6(mm) |
| Weight | about 3.3 kgs |

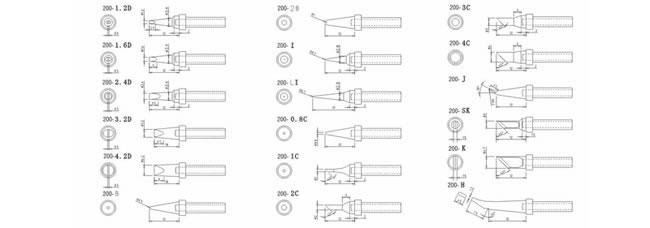

Replaceable tips
