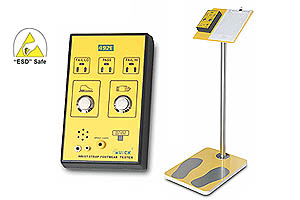

Features
Testing mode :
1) Individual test : test the wear status of wrist strap, single foot or both feet (foot ring, conducting shoes and anti-static shoes) separately.
2) Comprehensive test : test the wear status of wrist strap and both feet (foot ring, conducting shoes and anti-static shoes) simultaneously.

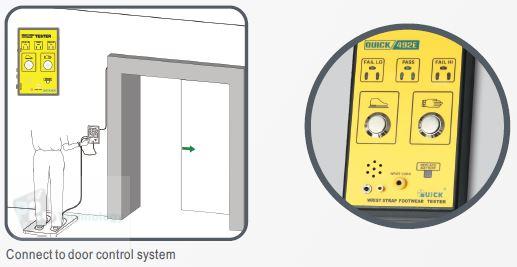

2. With door control system signal : the tester can output a signal to control the system and prevent people from entering anti-static places freely.
3. Combo tester uses mini current to test, resulting in stable and accurate.
4. Low voltage alarm function : the alarm indicator will flash if low battery.
5. Extended range of foot ring : 100KΩ-1GΩ.
Specifications
| Power supply | 9V battery or AC coupling adapter(DC 12V) |
| Output | 9 indicators |
| Sound signal, touch-point output and low voltage alarm output | |
| Touch-point switch output | Voltage ≤400V(peak value, DC or AC) |
| Switch current≤130mA, touch-point resistance < 30Ω | |
| Test PASS: touch-point close | |
| Test FAIL: Touch-point open | |
| Accuracy | Wrist strap ±10% |
| Footwear ±10%(100KΩ); ±20%(100MΩ); ±30%(1GΩ) | |
| Dimensions | 160 mm*100 mm*40 mm |
| Weight | About 12.0 kgs |
