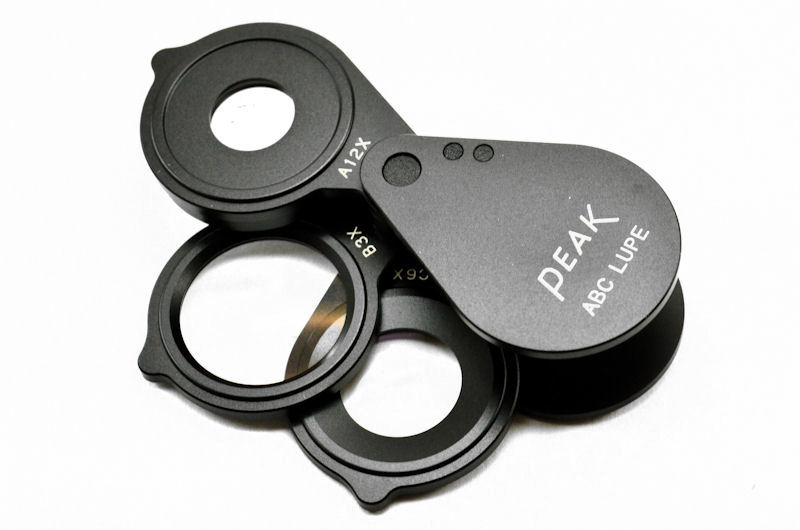

This Peak ABC folding loupe, #2061, is a precision magnifier, consisting of an A lens (12x achromatic), a B lens (3x plano-convex) and a C lens (6x plano-convex). These three, coated, high quality optical glass lenses allow seven different magnification factors. The silicate glass lenses used here are not only resistant to scratching, they are also distinguished by their high depth of field and extremely high contrast image. These magnifiers are produced using UV-absorbing crown glass; the same type of glass as used for corrective eye glasses (refractive index n= 1.52). The housing and lens frame are aluminium.
The ABC folding loupe is ideal for checking and inspection as well as observing natural phenomena. The magnification table on the rear of the magnifier indicates the lens combinations required for the various magnification factors. When using always ensure that the Peak lettering always points upward.
- Magnification Factors: 3x, 6x, 9x, 12x, 14x, 16x, 18x
- Lenses:
- A lens dia.: 14 mm, 12x
- B lens dia.: 28 mm, 3x
- C lens dia.: 20 mm, 6x
- Focusable: With working interval
- Lenses: Achromatic and plano-convex
- Dimensions: 60 x 39 x 24 mm
- Weight: 76 grams
- Case: Included
