รายละเอียด
- Measurement Data can be transferred to a computer. (This requires an input tool.)
- Up to 100 data measurements can be stores in memory at a time. (HP series and HDP Series )
- Can be checks maximum, minimum and average toque measurement. (HP series and HDP)
- Measurement can be easily taken in either clockwise or counterclockwise direction.
- Data can be output either numerically or as wave forms.
- Light, compact and operating on a rechargeable battery, it is convenient for carrying.
Specification

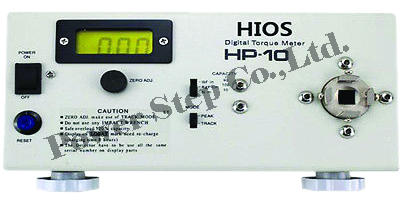

Peak Measuring Range HP-10 : 0.015 – 1 N・m / 0.15-10 kgf・cm / 0.15-9 lbf・in

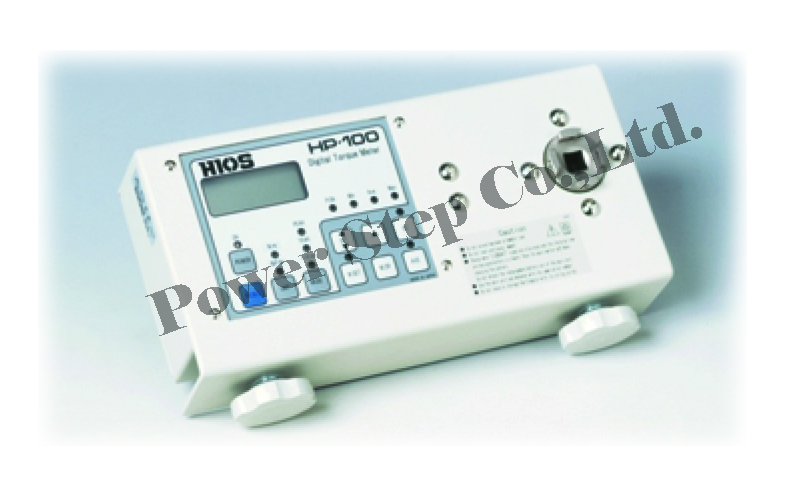

Peak Measuring Range HP-100 : 0.15 – 10 N・m / 1.5-100 kgf・cm / 1.5-90 lbf・in
Accuracy : Within ± 0.5% (F.S.)
Measuring Models : TRACK, PEAK, FIRST PEAK
External Dimensions(mm) : 230 ×124 ×65.2 (H) mm.
Weight (g) : 1.8 kgs.
Exclusive Battery Charger : Input ：AC 100-240V （50 / 60Hz）
Output ：DC 7.3 – 8V 0.5 A
