Specifications :
- Material : PP Plastic and Conductive Carbon Powder
- Color : Black
- ESD Control for Electronic Devices
- Surface Resistance : 10e4 – 10e6 Ohms
Measuring Device :
- Surface Resistance Meter Waterun SL-030
- Room Temp 25C, Humidity 55%
Many different sizes available.

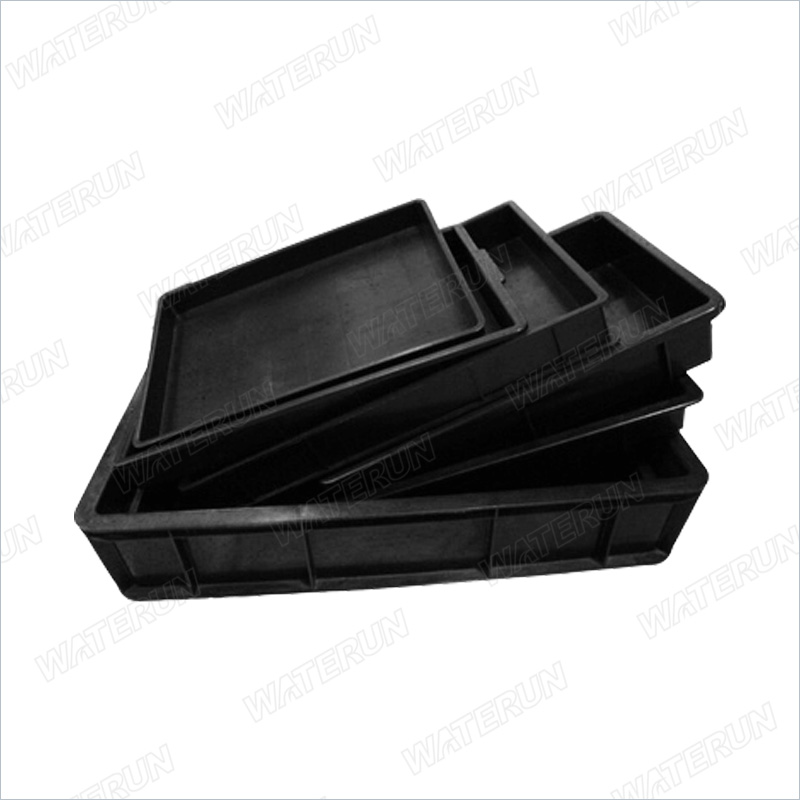

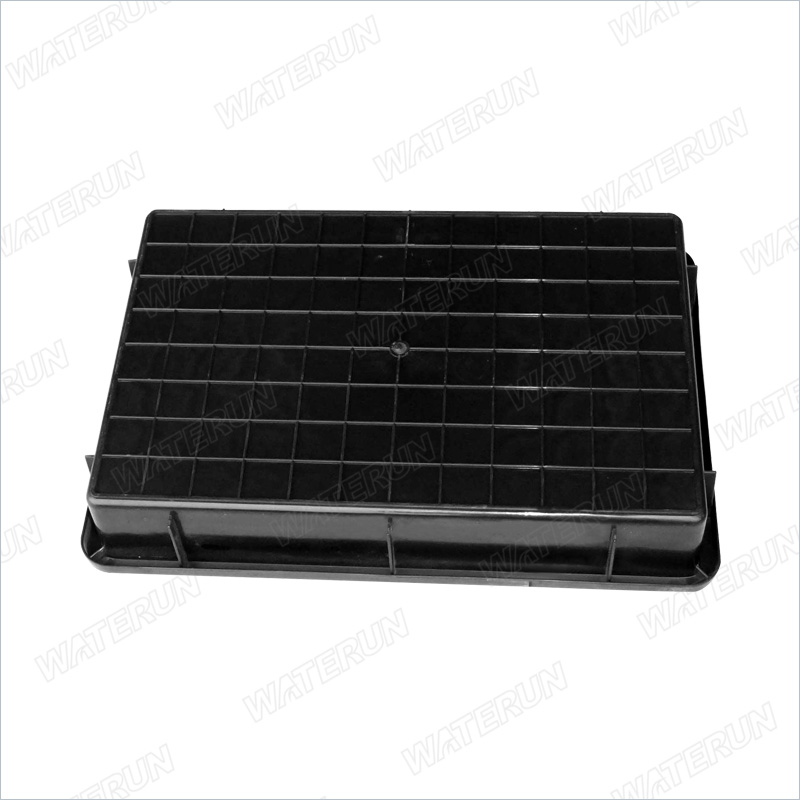

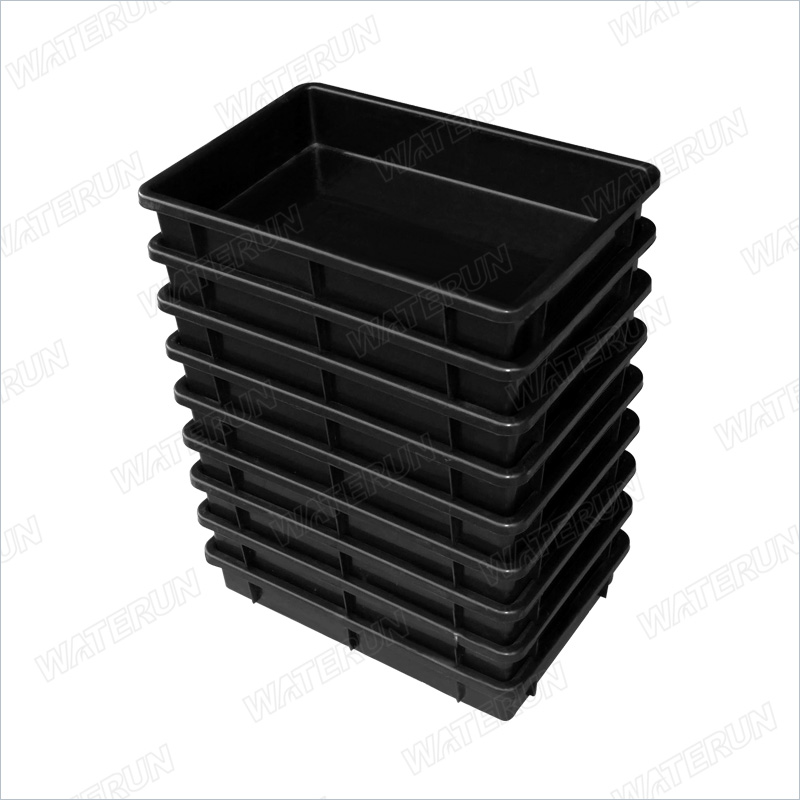

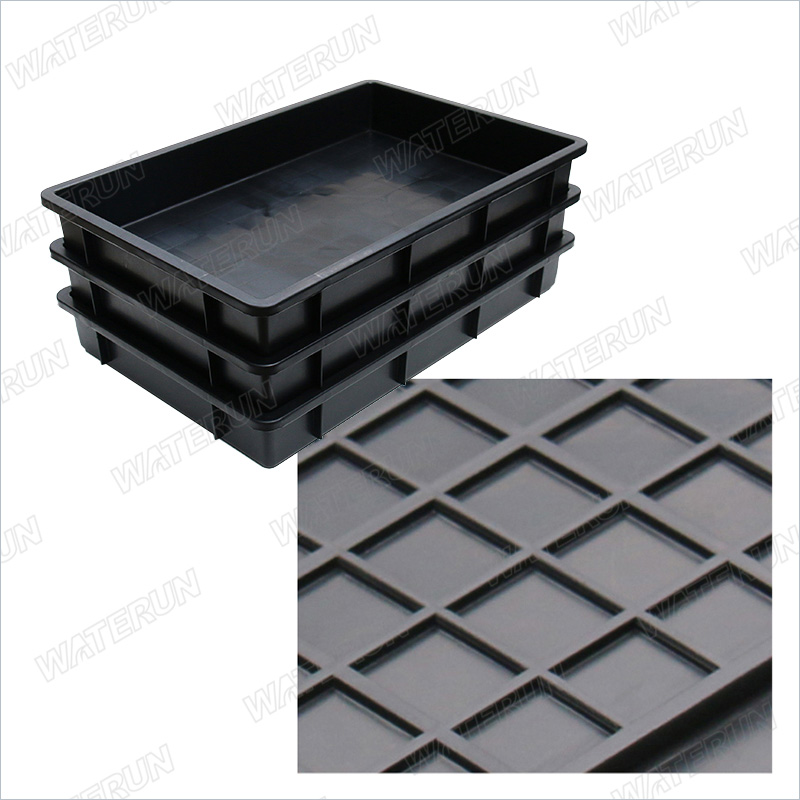

| Conductive Trays | |||
| Model | External Size (mm) | Internal Size (mm) |
|
| WT-2108 | 450 x 300 x 60 | 430 x 280 x 50 | |
| WT-2108A | 450 x 300 x 45 | 430 x 280 x 38 | |
| WT-2118(PS2226) | 440 x 290 x 50 | 400 x 265 x 45 | |
| WT-2121(PS2221) | 375 x 250 x 65 | 345 x 225 x 60 | |
| WT-2122(PS2222) | 440 x 295 x 80 | 410 x 265 x 75 | |
| WT-2123(PS2223) | 560 x 375 x 75 | 525 x 340 x 70 | |
| WT-2126(PS2224) | 320 x 235 x 43 | 310 x 225 x 35 | |
| WT-2135(PS2227) | 615 x 420 x 95 | 570 x 370 x 90 | |
| WT-2133(PS2225) | 480 x 328 x 42 | 445 x 292 x 35 | |
